Category

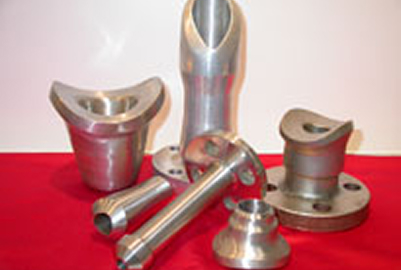

Forged Branch Outlet Fittings
As per MSS-SP-97

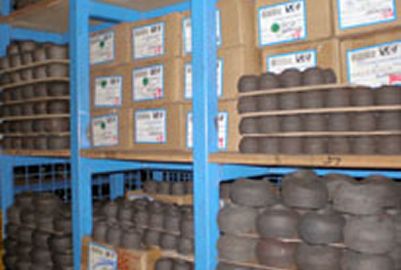

We are the exclusive agent/stockist for WFI International Inc. in the ASEAN region.
| Wall Thickness |
|---|
|
SCH.10, 20, 30, 40, 80, 120, 160, STD, XS, XXS, and Solid Bore |
| Products Range WFI’s Trademarks | Equivalent Range Bonney Forge’s Trademarks | Ratings Wall Thickness | Stock Available in Carbon Steel (A105N), Low Temperature (A350-LF2) and Stainless Steel (A182-F304/L, F316/L) |
| Butt-Weld Pipet® (BWP) | Weldolet® (WOL) | STD | 1/2″ through 24″ |
| XS | 1/2″ through 24″ | ||
| SCH.160 | 1/2″ through 8″ | ||
| XXS | 1″ through 6 “ | ||
| B/W Elbo-Pipet® (BEP) | Elbolet® B/W (LOL) | STD | 1/2″ through 4″ |
| XS | 1/2″ through 4″ | ||
| B/W Lateral Pipet® (BLP) | Latrolet® B/W (LOL) | STD | 1/2″ through 4″ |
| XS | 1/2″ through 4″ | ||
| Threaded Pipet® (THP) | Threadolet® (TOL) | 3000# | 1/4″ through 6″ |
| 6000# | 1/4″ through 2″ | ||
| Threaded Elbo-Pipet® (TEP) | Elbolet® NPT (EOL) | 3000# | 1/2″ through 2″ |
| 6000# | 1/2″ through 2″ | ||
| Threaded Lateral Pipet® (TLP) | Latrolet® NPT (LOL) | 3000# | 1/2″ through 2″ |
| 6000# | 1/2″ through 2″ | ||
| Threaded Nipple Pipet® (TNP) | Nipolet® NPT (NOL) | 3000#/SCH.160 | 1/2″ through 2″ |
| 6000#/XXS | 1/2″ through 2″ | ||
| Socket Weld Pipet® (SWP) | Sockolet® (SOL) | 3000# | 1/4″ through 4 “ |
| 6000# | 1/2″ through 2″ | ||
| 9000# | 1/2″ through 2″ | ||
| S/W Elbo-Pipet® (SEP) | Elbolet® S/W (EOL) | 3000# | 1/2″ through 2″ |
| 6000# | 1/2″ through 2″ | ||
| 9000# | 1/2″ through 2″ | ||
| S/W Lateral Pipet® (SLP) | Latrolet® (LOL) | 3000# | 1/2″ through 2″ |
| 6000# | 1/2″ through 2″ | ||
| Plain-End Nipple Pipet® (PNP) | Nipolet® P/E (NOL) | 3000#/SCH.80 | 1/2″ through 2″ |
| 6000#/SCH.160 | 1/2″ through 2″ | ||
| 9000#/XXS | 1/2″ through 2″ | ||
| B/W Vesselet® (BWV) | Sweepolet® (SWOL) | To be specified | 1 1/2 ” through 24″ |
| Flanged Pipet® (FLP) | Not Available | 150# RF | 1/2″ through 4″ |
| 300# RF | 1/2″ through 4″ | ||
| 600# RF / RTJ | 1/2″ through 2″ | ||
| 900#/1500# RF/RTJ | 1/2″ through 2″ | ||
| 2500#RF /RTJ | 1/2″ through 2″ |
| Materials | Specifications | Grades |
|---|---|---|
|
Carbon Steel |
ASTM A105N |
|
|
Low Temp
Carbon Steel |
ASTM A350 |
LF2 |
|
LF3 |
||
|
High Yield
Carbon Steel |
ASTM A694 |
F42 |
|
F52 |
||
|
F60 |
||
|
Alloy Steel |
ASTM A182 / A182M |
F1 |
|
F5 |
||
|
F9 |
||
|
F11/12 |
||
|
F22 |
||
|
Stainless Steel |
ASTM A182 / A182M |
F304/L |
|
F316/L |
||
|
F321 |
||
Note: If a material is not listed, it does not mean that it is unavailable.
